| Axle | 3-axle |
| 13 tons type | |

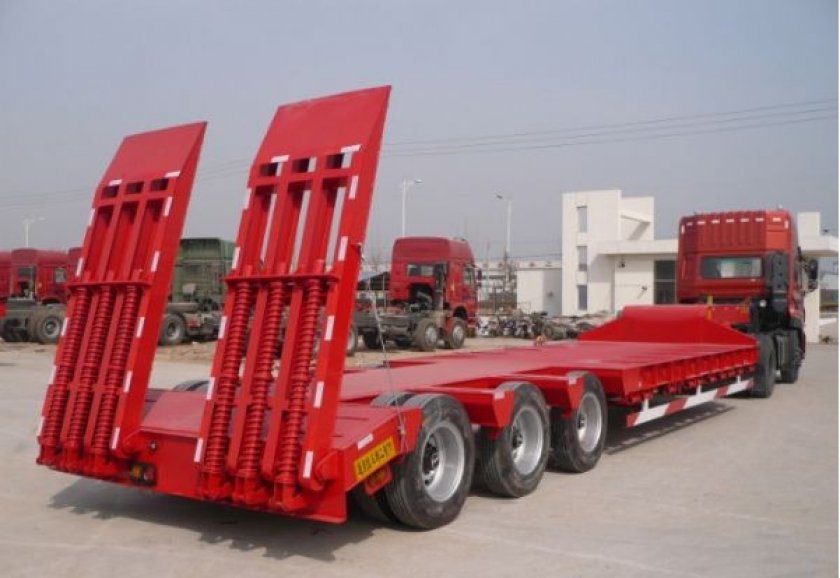

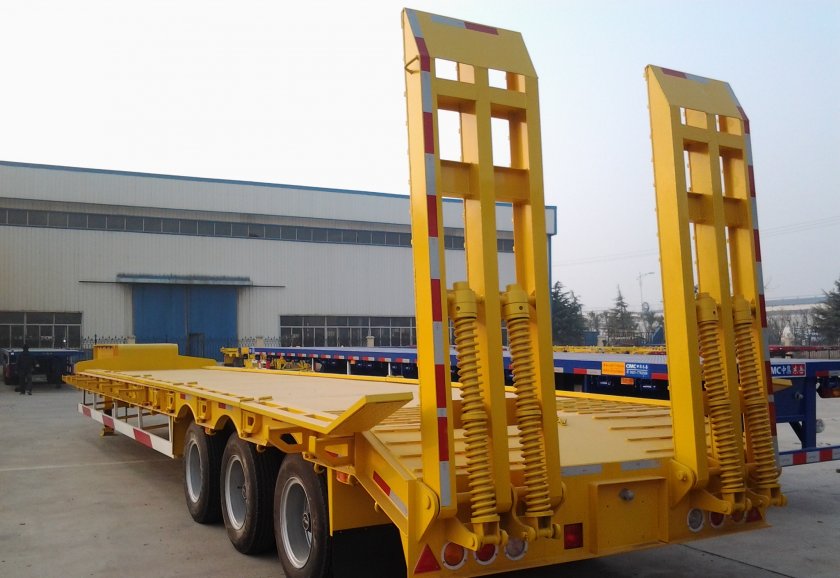

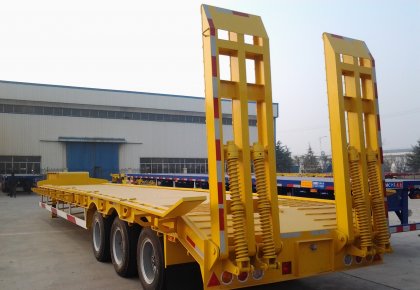

| Ladder | Power assisting ladder |
| Option: Hydraulic ladder +USD2400 | |
| Thickness of floor | 4mm |
| Gross weight (kg) | 50000 |
| Tare weight (kg) | 9800 |
| Payload (kg) | 40000 |
| External dimension (L*W*H) mm | 13000x3000x2820 |
| Body size(L*W) | 9000*3000mm |
| Wheel base(mm) | 7650+1305+1305 |
| Track space(mm) | 2160 |
| Tires | 8.25R20 |
| No. of tire | 8 |
| Trail pin | 3.5#Welded type |
| Main beam | 500,24/12/24 |
| Side beam | 25# channel steel |
| Floor | 4mm thickness (checked plate) |
| Lights, electrical, accessories | yes, 24 volts, |
