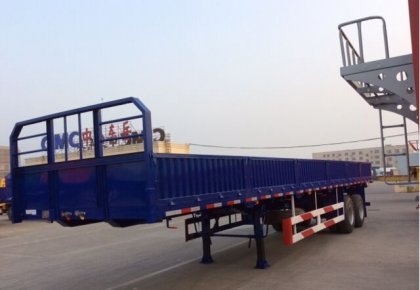

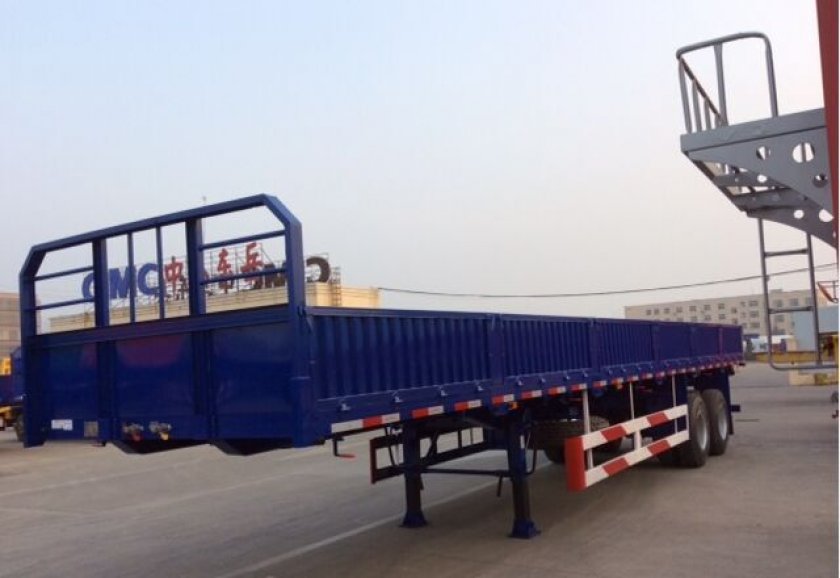

CIMC 2 Axles Dropside Cargo Trailer 50Tons


Cargo Trailer

I. DIMENSIONS

Inner Dimension

Length(mm)

13000

Width(mm)

2500

Height(mm)

600

Tare Weight(kg)

8350

Payload(kg)

50000

Quantity of Axle

2

Wheelbase(mm)

7300+1305

Wheel Track(mm)

1840/1840

Rear Overhang(mm)

1690

Departure Angle(°)

17

II. STANDARD SPECIFICATION

NO.

Products

Technical Specification, Brand, etc

1

Main Frame

16Mn steel, Opting for the most advanced digital control plasma cutting technique, welded by automatic Submerged-Arc processes Beam Height: 500mm , Upper Flange thickness: 14mm; Under Flange thickness: 16mm; Ventral Flange thickness: 8mm

2

Axle

13T x 2 pcs, 16T brake pad

3

Landing Gear

28T capacity, gear outside.

4

Braking System

WABCO RE6 relay valve; T30/30 spring brake chamber; 40L air tanks

5

Light

LED side lights and rear lights, width lamp

6

Leaf Spring

1leaves

7

Kingpin

3.5" fabricated type

8

Electrical System

24V

9

Tyre

12R22.5 - 12pcs

10

Painting

Complete chassis sand blasting to clean rust,1coat of anti-corrosive prime, 2coats of final paint

11

Accessories

Standard tool boxspare tire carrier
