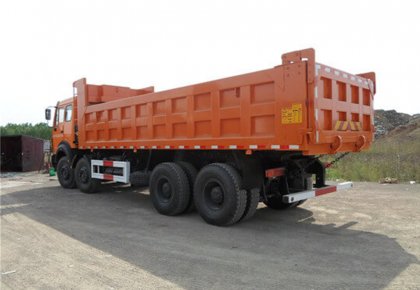

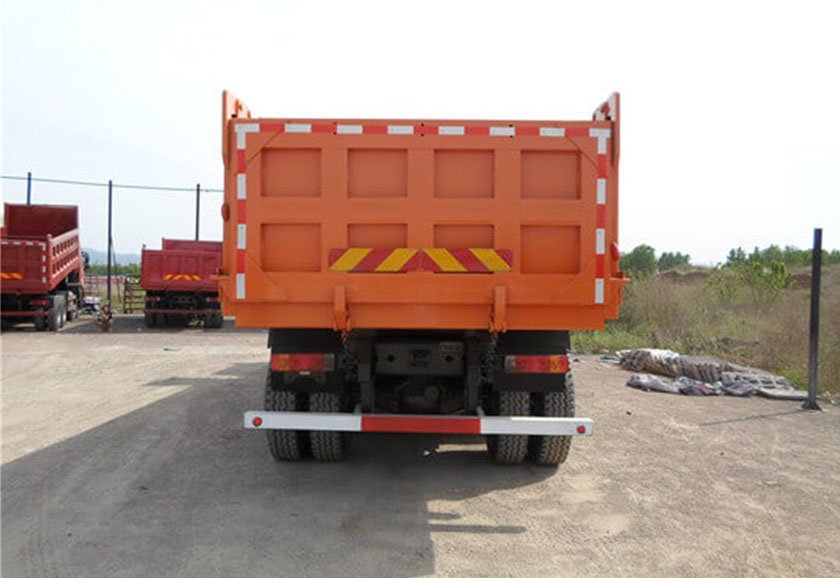

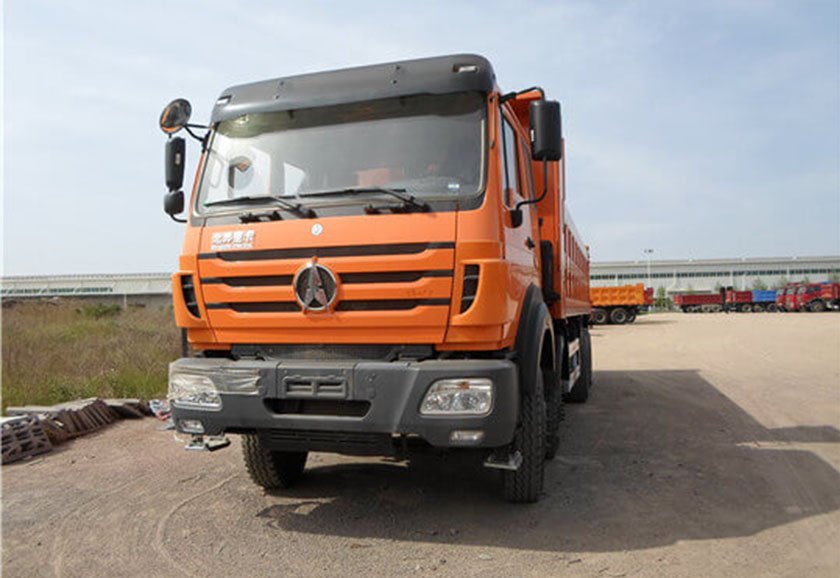

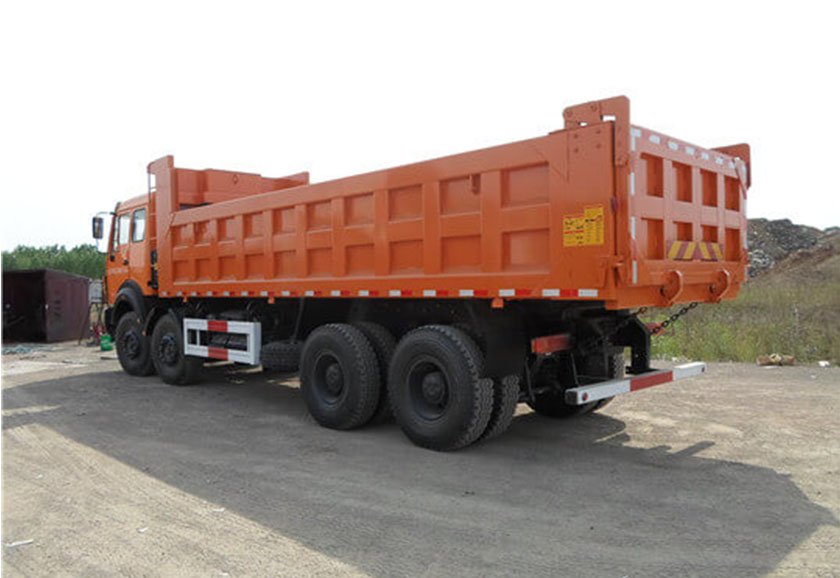

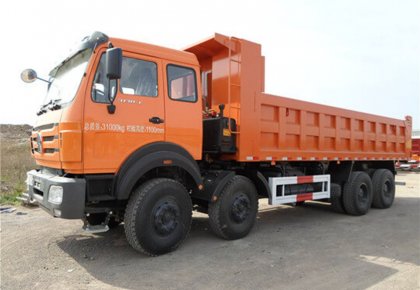

Model | 8x4 dump truck | |||
Cabin | Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; With inner A/C | |||
Engine | Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling. | |||
Model: | WP10. 380E32 | WEICHAI Diesel engine | ||
MAX Horse power: | 380HP/280KW | |||
Displacement(L): | 9.726liter (Euro 2 standard) | |||
Max torque: | 1500NM@1200-1600rpm | |||
Bore/stoke: | 126mm/130mm | |||
Gear box | Max torque:2000NM | |||
Model: | 12JS200T, mechanism,12gears,2reverse gear, manual, synchronization | |||
Speed: | 12speed,2reverse | |||
Axle(front/rear) | ||||
Front axle | Double-shoe pneumatic brake, non-driving steering axle | |||
Tandem | Double-shoe pneumatic brake, casting, double reduction driving axle | |||
Clutch | Single dry frictional disc,Hydraulic boosting | |||
Brake | Service brake: Brake gap can be adjusted automatically, double circulation air brake system | |||
Parking brake: Potential springs pressing on middle and rear wheels | ||||
Engine brake: Engine exhaust brake(EVB) | ||||
Steering | TAS85, driver sit at the left hand side
| |||
Electric Equipment | ||||
Operating voltage: | 24Vnegative grounded | |||
Starter: | 24V,5.4KW | |||
Alternator | 28V,758W | |||
Battery voltage | 12V/135Ah,cigar lighter | |||
Frame | Fish belly, shape, variable width, variable sections, side beam structure. | |||
Tyre | 12+1 spare tyre with rim | |||
12.00-R20 | ||||
Suspension system: strongthen heavy duty Leaf spring type | ||||
Front/Rear | 12/12/13 | |||
Dump body: | ||||
Inside size of Body(mm): 8500x2300x1000,6x8mm, made of high intensity steel | ||||
Lifting type: Front lifter “T” type hydraulic system. | ||||
Overall dimension(mm): 11730x2500x3484(Length x width x height) | ||||
Wheelbase | 1950+4600+1450mm | |||
Track: | ||||
Front/Rear | 2045/1872 | |||
Approach/Departure angle | 26/27 | |||
Front /Rear overhang | 1410/2320 | |||
Max speed | 90km/h | |||
Kerb weight: | 15500kg | |||
Oil tank capacity | 300L fuel tank | |||
