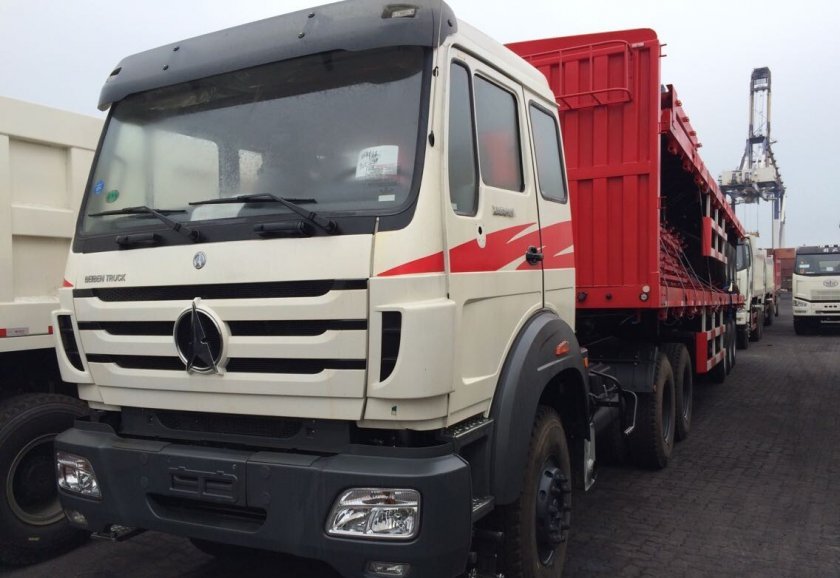

NORTH BENZ NG80 6X4 Tractor Truck | |
Model | ND42501B34J7 |
Driver's cab | Long High cabin, two sleepers with A/C |
Engine | Maker: WEICHAI |
Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging & inter cooling | |
Engine model: WP12.420E32 EURO II/EUROIII emission standard | |
Maximum output:420hp@2200rpm | |
Number of cylinder:6 | |
Displacement: 11.926L | |
Clutch | Single-plate dry coil-spring clutch,diameter 420mm,hydraulically operating with air assistance |
Transmission | Fuller 12JS200T transmission. |
Front Axle | Benz 7.5tons drum brake |
Rear Axle | Benz type double reduction drive axle, ratio=5.2 |
Steering | TAS85 |
Wheel & Types | Rims:8.5-20 |
Tyre:12.00R20 | |
Optional: 12R22.5//315/80R22.5 | |
Radial tire is optional | |
Electrics | Operating voltage: 24V,negative grounded |
Dimensions in mm | Wheel base : 3450+1450 |
Overall size: 7050x2500x3840 | |
Weight in kg | Kerb. mass: 8800 kg |
Total mass: 40000kg | |
Performance | Maximum driving speed(km/h) 90 |
Fifth wheel | 16070kg |
