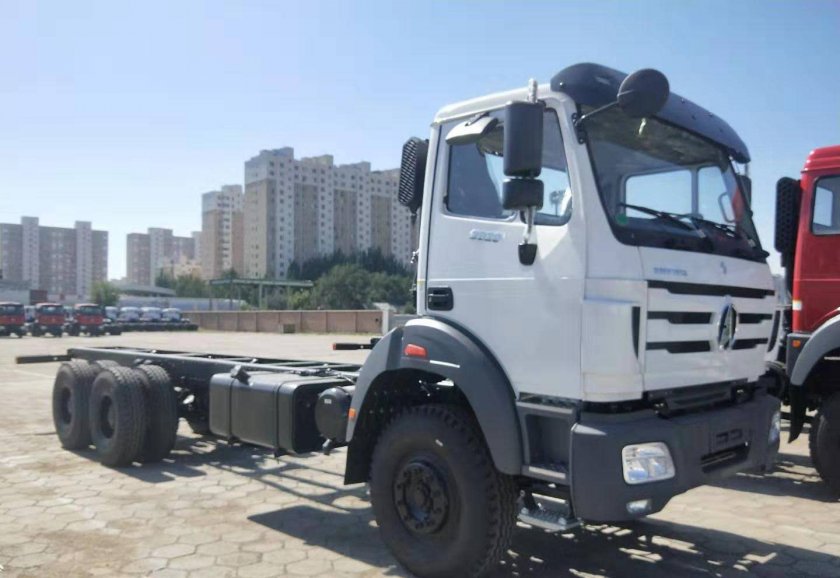

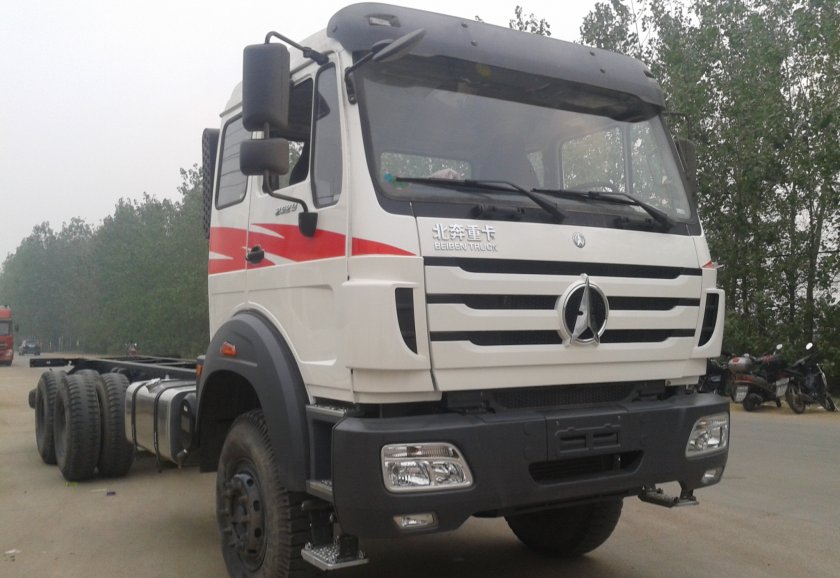

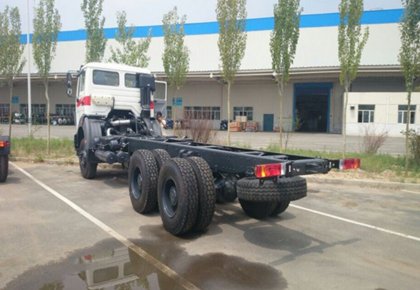

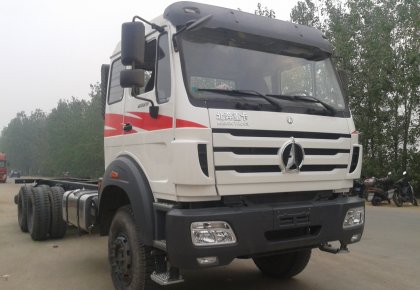

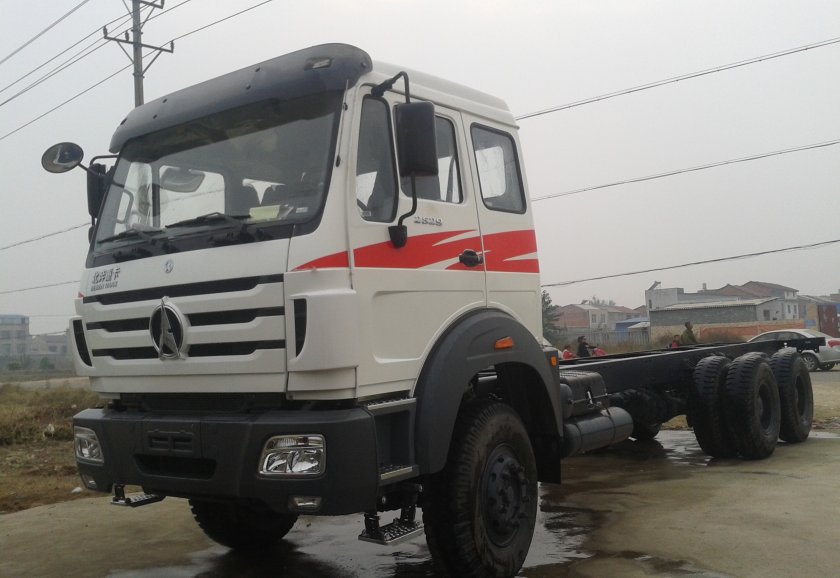

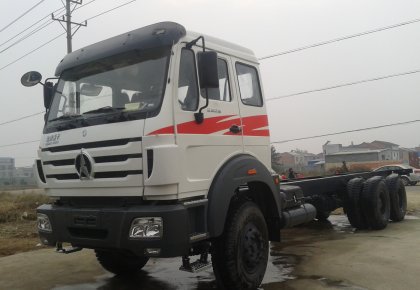

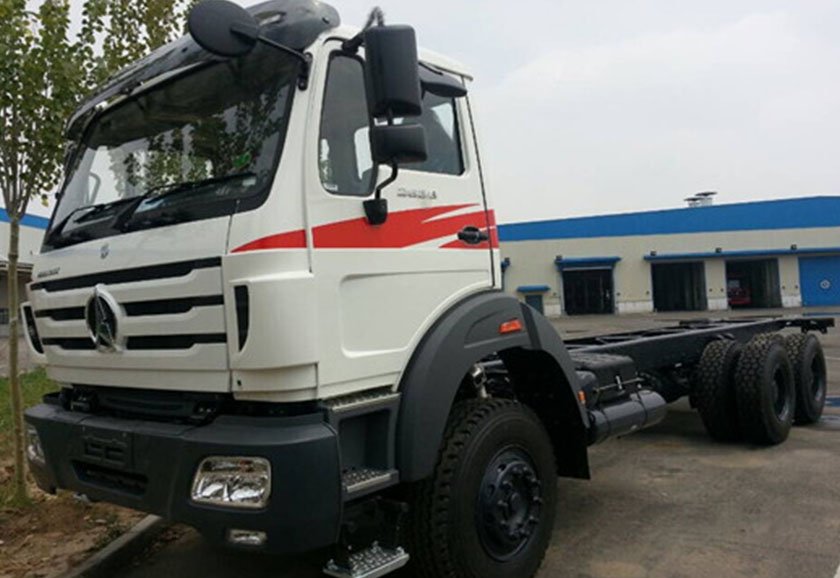

NORTH BENZ 6X4 Lorry Truck | |
Model | ND1255B50J |
Driver's cab | Long cabin, one sleeper |
Engine | Maker: North Benz |
Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging & inter cooling | |
Engine model: WP10.380E32 EURO II/EUROIII emission standard | |
Maximum output:380hp@2200rpm | |
Number of cylinder:6 | |
Displacement: 9.726L | |
Clutch | Single-plate dry coil-spring clutch,diameter 420mm,hydraulically operating with air assistance |
Transmission | Fuller 9JS150A transmission. |
Front Axle | Benz, drum brake |
Rear Axle | Benz double reduction drive axle, ratio=5.2 |
Steering | TAS85 |
Wheel & Types | Rims:8.5-20 |
Tyre:12.00R20 tube | |
Optional: 12R22.5, 315/80R22.5 | |
Radial tire is optional | |
Electrics | Operating voltage: 24V,negative grounded |
Dimensions in mm | Wheel base : 4750+1450 |
Overall size: 10576x2500x3385 | |
Weight in kg | Kerb. mass: 11300 kg |
Total mass: 25000kg | |
Performance | Maximum driving speed(km/h) 85 |
The manufacture reserves the right of technical alteration/change for better improvement prior notice | |
