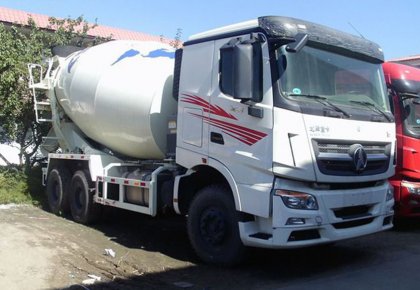

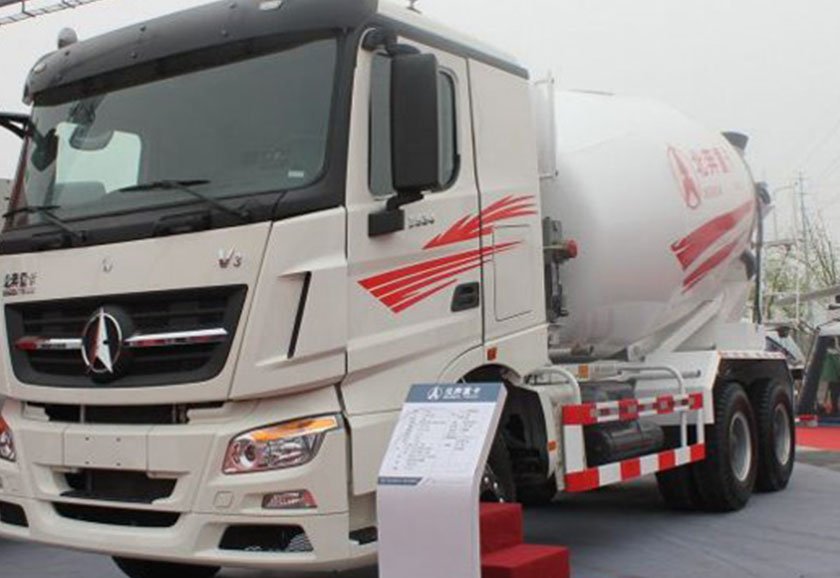

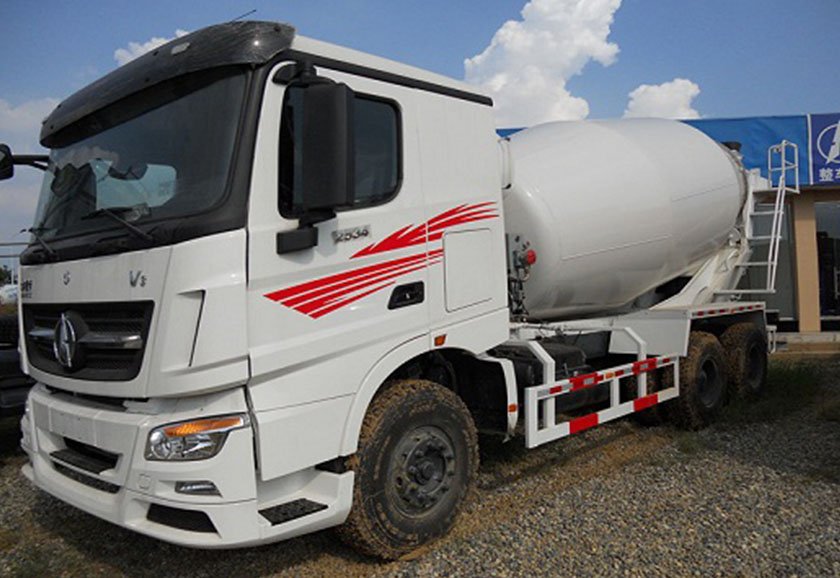

NORTH BENZ V3 6X4 340hp 8-10m3 Concrate Mixer Truck

Model

ND52501GJBZ

Driving type

LHD (Right Hand Drive is optional）

Driver's cab

Long cabin, single sleeper with A/C

Engine

Maker: WEICHAI

Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter-cooling

Engine model: WP10.340E32

EURO II/EUROIII emission standard

Maximum output:340HP@2200 rpm

Number of cylinder:6

Displacement: 9.726L

Clutch

430mm, hydraulically operating with air assistance

Transmission

FULLER Brand transmission.

Front Axle

Benz front axle 7.5 tons

Rear Axle

Benz TYPE double reduction drive axle

Steering

TAS85

Option: ZF8098, hydraulic steering with power assistance

Wheel & Types

Tyres: 12.00-20

Optional: 12R22.5,12R20

Radial tire and tubeless tire is optional

Electrics

Operating voltage: 24V, negative grounded

Dimensions in mm

Wheel base:                            4100+1450

Overall size:                       9405×2500×4000

Weight in kg

Kerb weight                            15155

Permissible trailing capacity               25000

Performance

Maximum driving speed(km/h)             85

Body mm

8~10 CBM Mixer body

The manufacture reserves the right of technical alteration/change for better improvement prior notice
