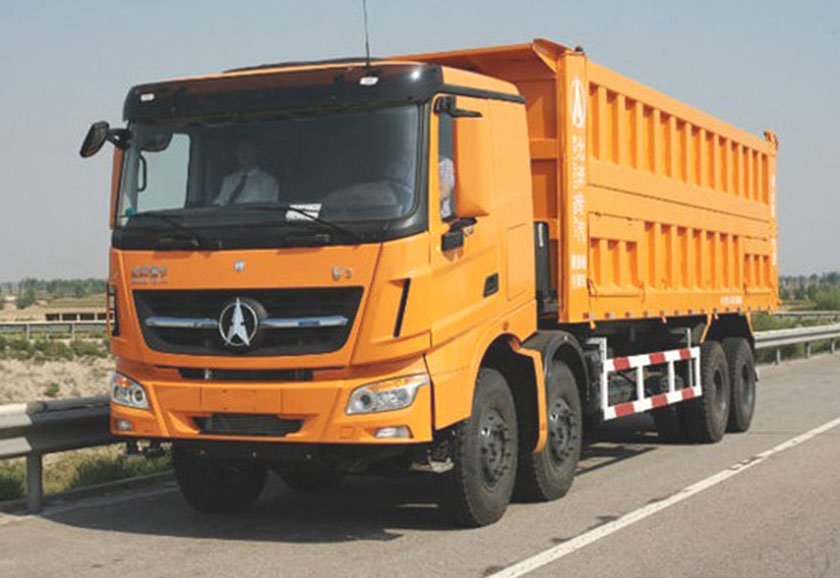

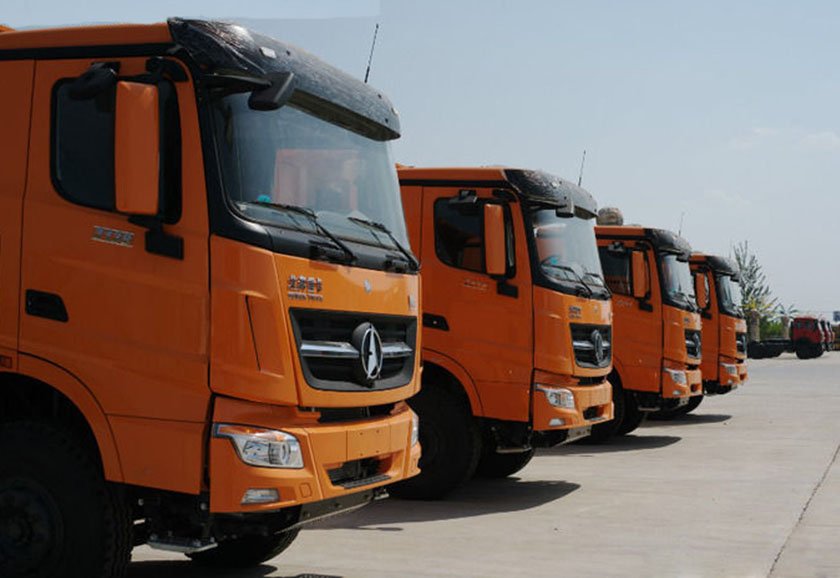

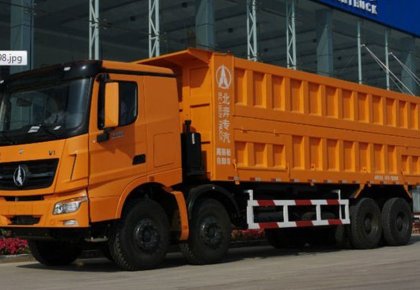

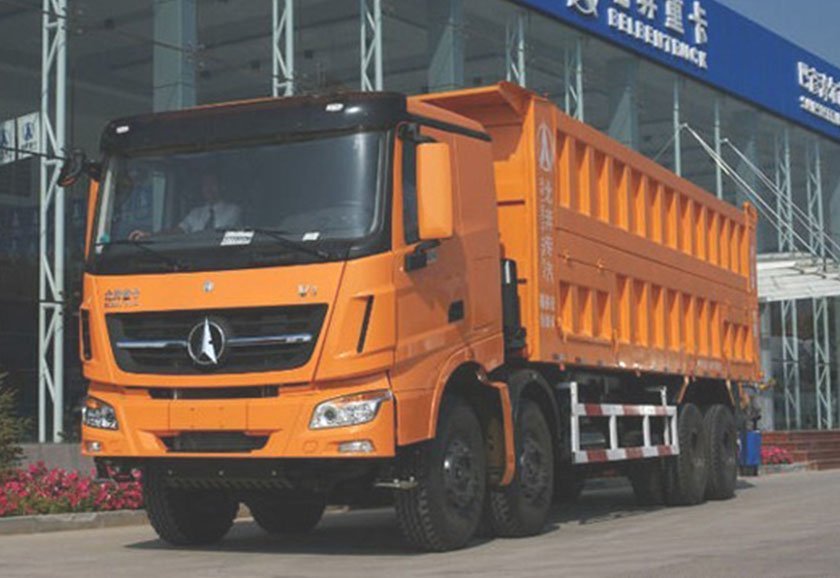

Beiben V3 NORTH BENZ 8X4 Dumper Tipper Truck | |
Model | ND33101D43J7 |
Driving type | LHD (Right Hand Drive is optional） |
Driver's cab | Long cabin, single sleeper |
Engine | Maker: WEICHAI |
Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling | |
Engine model: WP10.380E32 EURO II/EUROIII emission standard | |
Number of cylinder:6 | |
Displacement: 9.726L | |
Clutch | 430mm, hydraulically operating with air assistance |
Transmission | FULLER Brand transmission. |
Front Axle | Benz front axle 6.5 tons |
Rear Axle | Benz TYPE double reduction drive axle |
Steering | TAS85 |
Option: ZF8098, hydraulic steering with power assistance | |
Wheel & Types | Tyres: 12.00R20 |
Optional: 12R22.5 | |
Radial tire and tubeless tire is optional | |
Electrics | Operating voltage: 24V, negative grounded |
Dimensions in mm | Wheel base: 1950+4300+1450 |
Overall size: 11400×2500×3484 | |
Weight in kg | Kerb weight 14870 |
Permissible trailing capacity 40000 | |
Performance | Maximum driving speed(km/h) 85 |
Body mm | 7600x2300x1500 Floor 8 side&back4, front tipping type |
The manufacture reserves the right of technical alteration/change for better improvement prior notice | |
