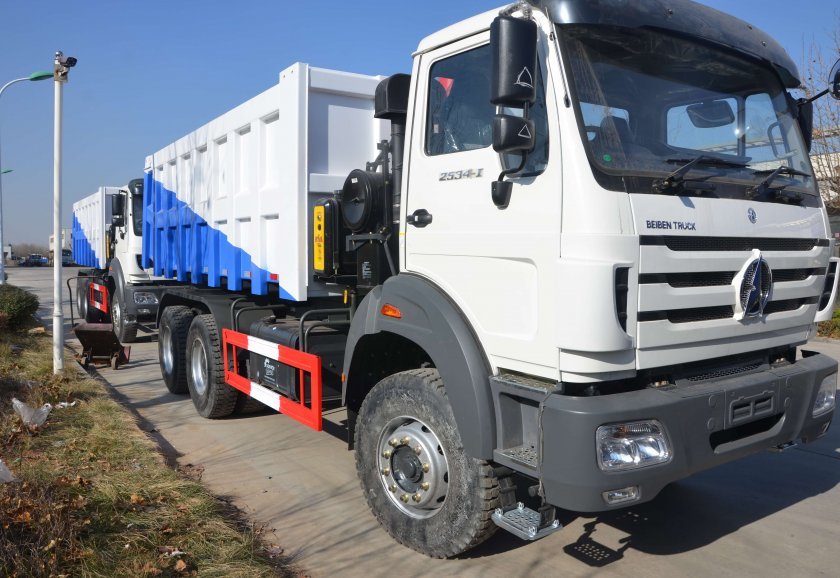

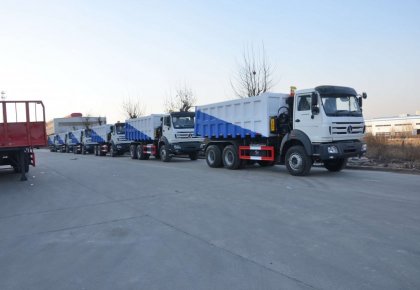

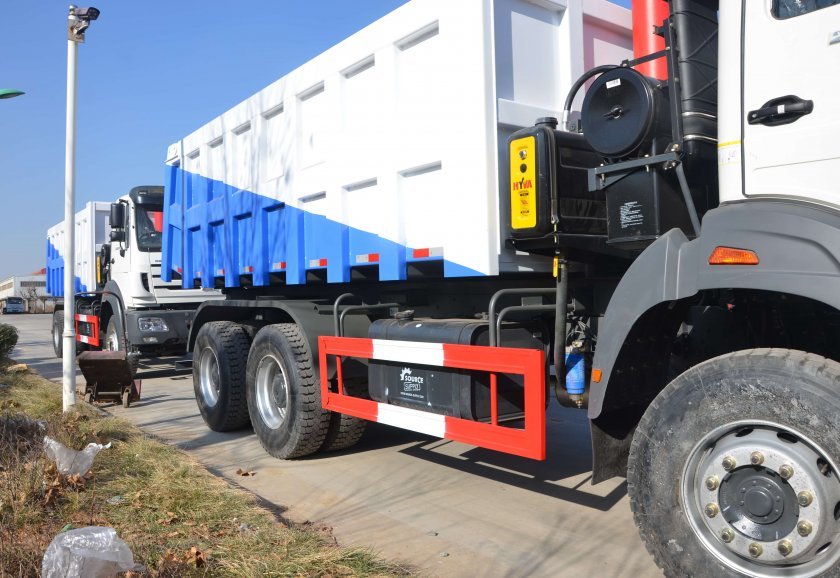

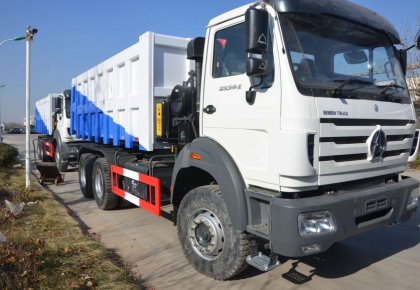

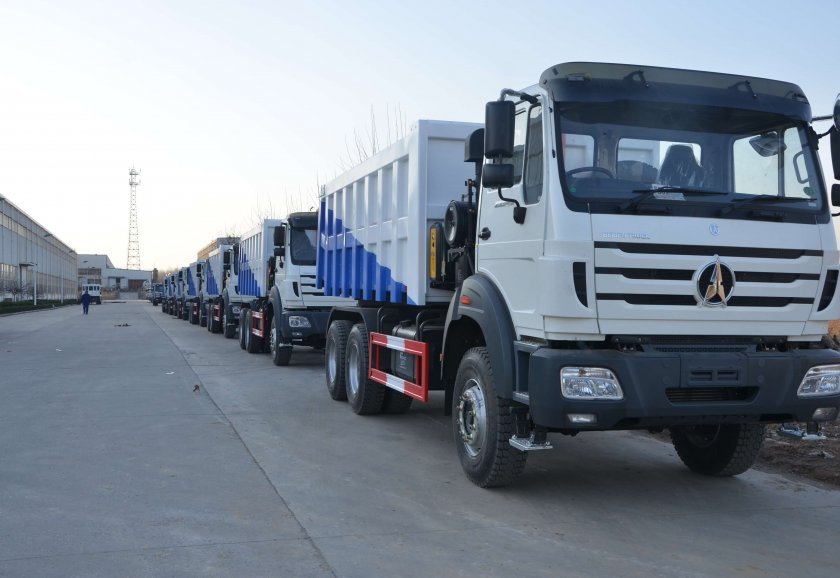

North Benz (Beiben) NG80 2638KZ 6X4 380hp 20m3 Dumper Truck

Model

ND3255B41J

Driving type

LHD (Right Hand Drive is optional）

Driver's cab

Long cabin, with one sleeper

Engine

Maker: WEICHAI

Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling

Engine model: WP10.380E32

EURO II/EUROIII emission standard

Maximum output: 380HP @2200 rpm

Number of cylinder:6

Displacement: 9.726L

Clutch

430mm, hydraulically operating with air assistance

Transmission

FULLER Brand transmission.

Front Axle

Benz front axle 7.5 tons

Rear Axle

Benz double reduction drive axle

Steering

TAS85

Option: ZF8098, hydraulic steering with power assistance

Wheel & Types

Tires: 12.00R20

Optional: 12R20/12R22.5

Radial tire and tubeless tire is optional

Electrics

Operating voltage: 24V, negative grounded

Dimensions in mm

Wheel base:                           3800+1450

Overall size:                       8260x2500x3450

Weight in kg

Kerb weight                             12220

Permissible trailing capacity               25000

Performance

Maximum driving speed(km/h)             85

Body mm

5800x2300x1500 Floor 8 side&back4, front lifting type

The manufacture reserves the right of technical alteration/change for better improvement prior notice
